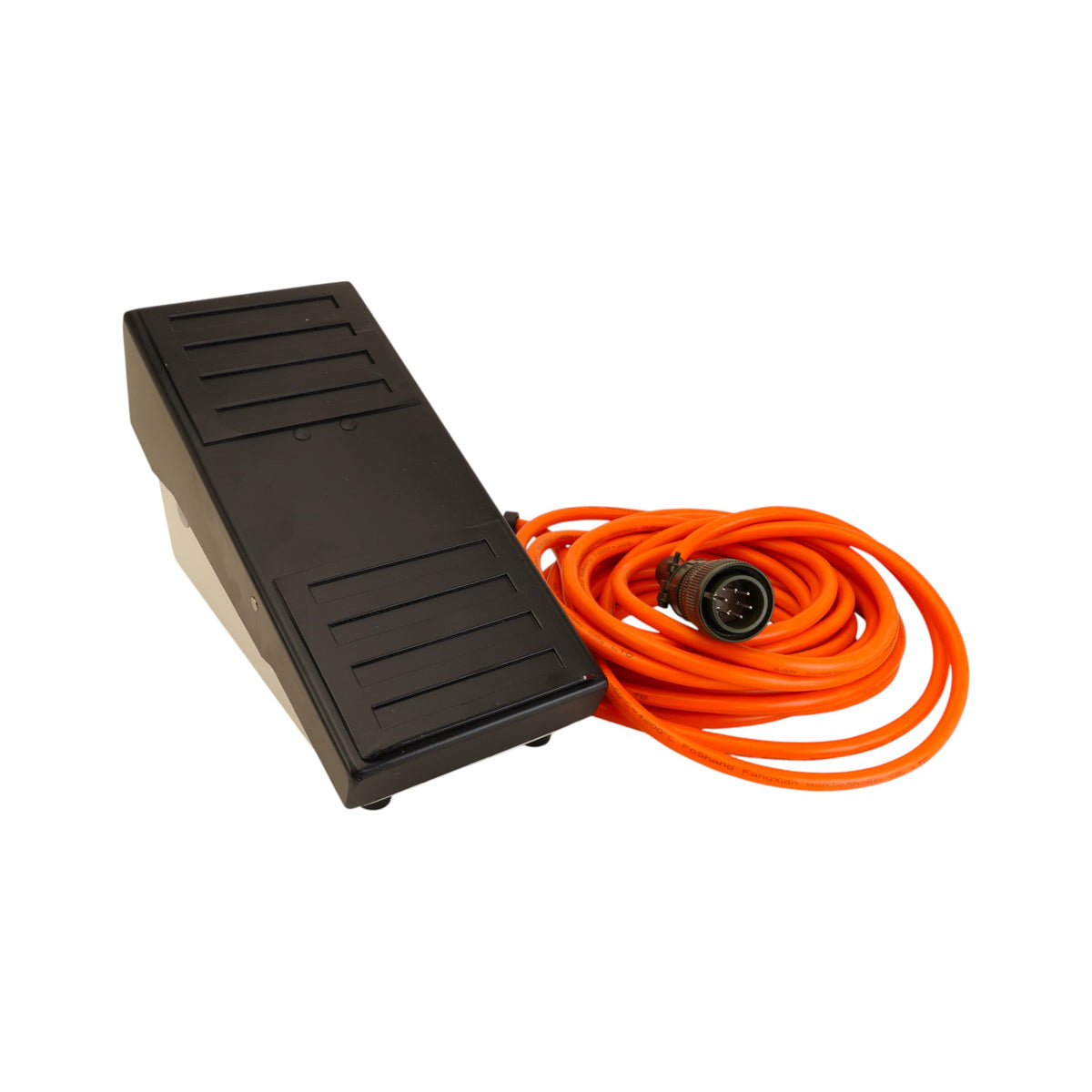

Lincoln Style Wired Foot Pedal

The best aftermarket Lincoln foot pedal available. The Weldready brand foot pedal is fully interchangeable with Lincoln OEM foot pedals and amperage controls that utilize a 6 pin connection.

This product was hand picked for it's heavy duty 100% steel external construction, but more importantly for the high quality parts inside. The internal springs, cam profiles, component mounting brackets, potentiometer, and all other internals were clearly designed to be abused. We tested a half dozen aftermarket amperage control manufacturers, and this one was the undisputed champ. It wasn't even a conversation, this pedal has a superior build quality to the OEM version.

If you want welder-vetted, OEM quality foot pedal without over-paying, this is the product for you!

Features:

• Direct replacment to Lincoln part number K870
• Operates contactor and controls amperage output
• Heavy duty construction exceeds OEM quality
• 25Ft cord with a 6 pin Lincoln plug
• Hard plastic feet stops the pedal from drifting across concrete while the weight of your foot is on it, but lets it slide across the floor when kicked
• Highly flexible and heat resistant silicone control cable cover
• Control cable is threaded into connection on side for easy replacement
• Fits on a wide range of Lincoln machines accepting a 6 Pin connection

Comparing the Weldready Pedal to Lincoln K870 Pedal

• The Lincoln OEM pedal feels like a toy in comparison
• Lincoln pedals are a small simple construction of thin sheet metal, ours is a heavy steel tank
• Lincoln pedals have a thin rigid rubber cable, ours has a flexible heat resistant silicon cover
• Heal rest on ours is not a janky snap on solution, it is built right in
• Lincoln OEM pedals have a grip-tape sandpapery decal applied to the top for grip, ours has stamped steel grooves that will not wear down with time

Non-Exhaustive List of Compatible Machines

• Fits any Lincoln welder that utilizes a 6 pin receptacle
• Lincoln R3R 400, R3R 500 (Codes 9534 And Above)

• Lincoln Square Wave Tig 175, 175 pro, 255, 275, 300, 350, 355
• Lincoln DC400, DC600

• Lincoln Tig 250/250 (All), 300/300 (codes 8875 and above)

• Lincoln DC Tig Starter (K900-1)
• Lincoln Tig Module (K930-1)
• Lincoln Invertec V160-T, V311-T, V275-S, V350 Pro, V205T, V310T, V450 Pro
• Lincoln Precision Tig 225, 275, 375
